Overview
The router provides Internet access, but the design must also define which VLANs reach servers and who can manage the router. This guide builds an example IPv4 perimeter and inter-VLAN policy for RouterOS v7, starting in a lab. The 203.0.113.0/24 range is documentation space; replace all addresses, interfaces, service ports and example requirements with the actual design.
Internet
|
MikroTik Router
+-- VLAN 10 Users 10.10.10.0/24
+-- VLAN 20 Servers 10.10.20.0/24
+-- VLAN 30 VoIP 10.10.30.0/24
+-- VLAN 40 Guest 10.10.40.0/24
+-- VLAN 99 Mgmt 10.10.99.0/24Adapt these rules to your network before applying them. Export the current configuration, take an appropriate RouterOS backup and enter Safe Mode. Create and test the management access rule before adding the final drops. Keep console access or an independent recovery path available.
/export file=before-firewall-hardening
/system backup save name=before-firewall-hardeningSafe Mode rolls back changes made during the session if the management session is lost. Use Ctrl+X in terminal, or the Safe Mode button in Winbox, and confirm that the administrator can reconnect before leaving Safe Mode.
Prerequisites
Use a supported release, a tested backup, administrative access, a maintenance window when required, and a rollback plan. Validate DNS, time synchronization, firewall rules, storage, and monitoring before implementation.
Architecture and Core Concepts
Understand the data flow, trust boundaries, dependencies, and the expected state before changing a live environment. Separate control-plane configuration from data-plane traffic and document every external dependency.

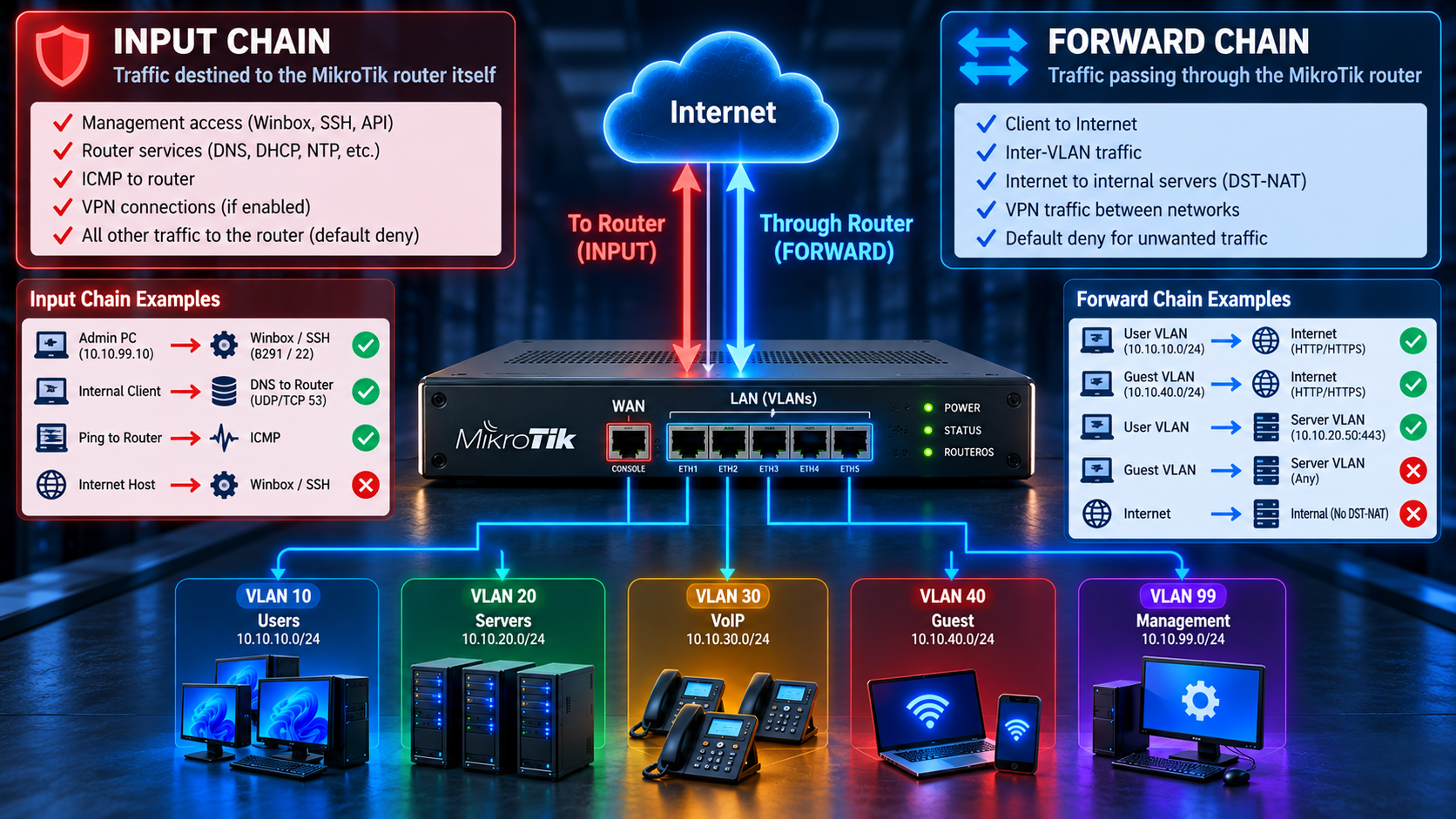

Input and Forward: the critical distinction
First ask where the packet is going. If it targets one of the router's addresses, input handles it; if the router is forwarding it to another host, forward handles it. A rule protecting the router's WinBox service therefore does not define access to a server behind it. Both paths need their own policy.
- Admin to MikroTik Winbox: input
- User to Internet: forward
- User VLAN to Server VLAN: forward
- Internet to published web server: forward after DST-NAT
- DNS request to the router: input
Input protects RouterOS; Forward protects routed networks.
Interface Lists and Address Lists
An interface list names a trust boundary so policy does not depend on one physical port number; WAN means the actual external path, including PPPoE when used. Address lists make source/destination groups readable and allow adding a subnet without duplicating every rule.
/interface list
add name=WAN comment="Internet-facing interfaces"
add name=LAN comment="Trusted internal interfaces"
/interface list member
add list=WAN interface=ether1
add list=LAN interface=vlan10-users
add list=LAN interface=vlan20-servers
add list=LAN interface=vlan30-voip
add list=LAN interface=vlan40-guest
add list=LAN interface=vlan99-mgmt
/ip firewall address-list
add list=MGMT-ADMINS address=10.10.99.10 comment="Network Administrator"
add list=INTERNAL-NETWORKS address=10.10.10.0/24 comment="Users"
add list=INTERNAL-NETWORKS address=10.10.20.0/24 comment="Servers"
add list=INTERNAL-NETWORKS address=10.10.30.0/24 comment="VoIP"
add list=INTERNAL-NETWORKS address=10.10.40.0/24 comment="Guest"
add list=INTERNAL-NETWORKS address=10.10.99.0/24 comment="Management"
add list=SERVER-NETWORKS address=10.10.20.0/24 comment="Servers"
add list=GUEST-NETWORKS address=10.10.40.0/24 comment="Guest"Configuration and Validation
Apply the smallest configuration that satisfies the requirement. Keep environment-specific values in a secret-managed configuration, validate syntax before reload, and verify the result from both the service and client perspectives.
Protecting the MikroTik Router: INPUT Chain
In input, allow replies to permitted connections first, then handle invalid state. Grant infrastructure and management services explicitly for their required sources, ending with default deny. Do not block all ICMP; diagnostics and PMTUD need it.
/ip firewall filter
add chain=input action=accept connection-state=established,related,untracked comment="INPUT - Allow Established Related"
add chain=input action=drop connection-state=invalid comment="INPUT - Drop Invalid"
add chain=input action=accept protocol=icmp limit=20,5:packet comment="INPUT - Allow ICMP with controlled rate"
add chain=input action=accept protocol=tcp dst-port=8291 src-address-list=MGMT-ADMINS in-interface=vlan99-mgmt comment="INPUT - Winbox from Admins"
add chain=input action=accept protocol=tcp dst-port=22 src-address-list=MGMT-ADMINS in-interface=vlan99-mgmt comment="INPUT - SSH from Admins"
add chain=input action=accept protocol=udp dst-port=53 src-address-list=INTERNAL-NETWORKS in-interface-list=LAN comment="INPUT - DNS UDP from LAN"
add chain=input action=accept protocol=tcp dst-port=53 src-address-list=INTERNAL-NETWORKS in-interface-list=LAN comment="INPUT - DNS TCP from LAN"
# DHCP server rules are scenario-dependent. Add only when this router is the DHCP server.
add chain=input action=accept protocol=udp src-port=68 dst-port=67 in-interface-list=LAN comment="INPUT - DHCP client requests when required"
# Add a VPN rule only when that VPN is enabled and its actual port is confirmed.
# add chain=input action=accept protocol=udp dst-port=13231 in-interface-list=WAN comment="INPUT - WireGuard example, review port"
add chain=input action=drop in-interface-list=WAN comment="INPUT - DROP New WAN Access"
add chain=input action=drop comment="INPUT - DROP Everything Else"The invalid rule is recommended by MikroTik, but asymmetric routing can make valid flows appear invalid. If the design has multiple paths, IPsec, ECMP or policy routing, inspect connection tracking and return-path symmetry before enforcing it globally.
Hardening RouterOS Services and DNS
Firewall filtering and service binding are complementary. Disable services that are not used. Restrict Winbox and SSH at the service layer as well as in the firewall. If allow-remote-requests is enabled, DNS must never be exposed on WAN; permit both UDP and TCP 53 only from approved LAN networks.
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www disabled=yes
set api disabled=yes
set api-ssl disabled=yes
set ssh address=10.10.99.0/24
set winbox address=10.10.99.0/24
/ip ssh set strong-crypto=yes
/ip dns set allow-remote-requests=yesThe final DNS command is intentional only if the router is the approved DNS cache. Otherwise use allow-remote-requests=no. DHCP needs an input rule only when clients send DHCP requests to this router's local DHCP server; do not add it merely because DHCP exists somewhere in the network.
Protecting Internal Networks: FORWARD Chain
Forward rules protect clients and control Internet, inter-VLAN and published-service traffic. NAT is not permission: firewall filter is permission, while NAT is address translation. Every business flow must be an explicit allow before a segmentation or final drop.
/ip firewall filter
add chain=forward action=accept connection-state=established,related,untracked comment="FORWARD - Allow Established Related"
add chain=forward action=drop connection-state=invalid comment="FORWARD - Drop Invalid"
add chain=forward action=drop connection-state=new connection-nat-state=!dstnat in-interface-list=WAN comment="FORWARD - Drop New WAN Traffic Not DSTNATed"
add chain=forward action=accept src-address=10.10.10.0/24 dst-address=10.10.20.50 protocol=tcp dst-port=443 comment="FORWARD - Users to App HTTPS"
add chain=forward action=accept src-address=10.10.99.0/24 dst-address-list=INTERNAL-NETWORKS protocol=tcp dst-port=22,443,3389 comment="FORWARD - Mgmt Administrative Services"
add chain=forward action=accept src-address=10.10.10.0/24 out-interface-list=WAN protocol=tcp dst-port=80,443 comment="FORWARD - Users Internet Web"
add chain=forward action=accept src-address=10.10.40.0/24 out-interface-list=WAN protocol=tcp dst-port=80,443 comment="FORWARD - Guest Internet Web"
add chain=forward action=log src-address-list=GUEST-NETWORKS dst-address-list=INTERNAL-NETWORKS log-prefix="DROP_GUEST " limit=10,5:packet comment="LOG - Drop Guest to Internal"
add chain=forward action=drop src-address-list=GUEST-NETWORKS dst-address-list=INTERNAL-NETWORKS comment="FORWARD - Drop Guest to Internal"
add chain=forward action=drop src-address=10.10.10.0/24 dst-address-list=SERVER-NETWORKS comment="FORWARD - Drop Other Users to Servers"
add chain=forward action=log src-address-list=INTERNAL-NETWORKS dst-address-list=INTERNAL-NETWORKS log-prefix="DROP_INTERVLAN " limit=10,5:packet comment="LOG - Drop Unauthorized Inter-VLAN"
add chain=forward action=drop src-address-list=INTERNAL-NETWORKS dst-address-list=INTERNAL-NETWORKS comment="FORWARD - Drop Unauthorized Inter-VLAN"
add chain=forward action=log in-interface-list=WAN log-prefix="DROP_WAN " limit=10,5:packet comment="LOG - Drop Unapproved WAN"
add chain=forward action=drop in-interface-list=WAN comment="FORWARD - Drop Unapproved WAN"
add chain=forward action=log log-prefix="DROP_FORWARD " limit=10,5:packet comment="LOG - DROP Everything Else"
add chain=forward action=drop comment="FORWARD - DROP Everything Else"Add DNS, NTP, backup, monitoring, PBX and VoIP rules only after documenting the actual server addresses and ports. Do not hard-code universal SIP/RTP ranges without checking the PBX vendor. Guest must be Internet-only. VoIP should reach only the PBX and required services. Published web servers require an explicit dstnat rule and a matching forward accept rule.
Default deny between VLANs, with explicit service-based exceptions.
Should We Use FastTrack in Enterprise Networks?
FastTrack can bypass parts of firewall, queues, mangle, IPsec, traffic accounting, policy routing and monitoring processing. It is not enabled in the base configuration here. If the organization uses queues, IPsec, advanced routing or detailed accounting, test impact first and exclude affected traffic. Existing connections may also retain old processing until they expire or are cleared under an approved change plan.
Why Firewall Rule Order Matters
RouterOS evaluates filter rules from top to bottom. The first terminating action wins. A broad accept above a segmentation drop, or a final drop above an application allow, changes the policy. Use this operational order: established/related, invalid, critical infrastructure, management, required services, inter-VLAN allows, Internet allows, WAN protection, segmentation drops, final drop.
Place narrow permits before broad drops and verify counters after each change.
Rate-limit logging separately from unconditional denial
limit is a packet matcher, not a logging-rate setting. Putting limit on the last action=drop rule allows above-limit packets to continue past that rule; a chain ending without a matching deny can accept them. Use a separate action=log rule with a limit, immediately followed by the same unconditional drop. Logging passes to the next rule. The corrected example keeps all segmentation and final denials unconditional. Test traffic above the logging rate: log volume stays bounded while drop counters continue rising.
Testing Matrix
| Source | Destination | Service | Expected |
|---|---|---|---|
| Admin PC | MikroTik | Winbox | Allow |
| Users | MikroTik | Winbox | Drop |
| Internet | MikroTik | Winbox | Drop |
| Users | Internet | HTTP/HTTPS | Allow |
| Guest | Internet | HTTP/HTTPS | Allow |
| Guest | Servers | Any | Drop |
| Users | 10.10.20.50 | TCP 443 | Allow |
| Users | Server VLAN | Other | Drop |
| Internet | LAN | New / No DST-NAT | Drop |
Run every row from the real source and destination before production deployment. Test fresh and existing connections separately.
Firewall Troubleshooting
Start with the path, then counters, connections, Torch and packet capture.
/ip firewall filter print
/ip firewall filter print stats
/ip firewall connection print
/tool torch interface=vlan10-users
/tool sniffer quick interface=vlan10-users ip-protocol=tcp port=443
/log print where message~"DROP_"
/ping 10.10.20.50
/tool traceroute 1.1.1.1Compare packet/byte counters with the intended path. A zero allow counter may mean wrong rule order, interface, address list or endpoints, or an earlier matching rule. For failed Internet access, inspect forward policy, srcnat/masquerade, the default route, DNS and WAN membership. Router-originated ping uses output and does not test client forward. For guest access to a server, inspect established connections, address lists, VLAN/bridge design and hardware offload. Unlimited logging on every drop can overload CPU and logs during an attack.
Advanced Notes and Production Checklist
RouterOS also provides /ip firewall raw for advanced filtering before connection tracking. RAW can help with bogon or invalid-source filtering, but a large RAW design is outside this article. IPv4 hardening does not secure IPv6. If IPv6 is enabled, build and test a separate /ipv6 firewall filter policy.
- Disable unused services and management exposure on WAN.
- Use meaningful comments, backups, Safe Mode and supported RouterOS releases.
- Review and remove obsolete rules periodically.
Official References: MikroTik Filter, Connection Tracking, Services, DNS and Securing Your Router documentation. MikroTik Filter · Connection Tracking · Services · DNS
Conclusion
A reliable implementation of MikroTik Firewall Hardening for Enterprise Networks Using Input and Forward Chains is more than a successful first run. Keep the configuration documented, observable, recoverable, and aligned with the team's change-management process.
Frequently Asked Questions
What is the difference between input and forward?
Input protects services on the router itself; forward controls traffic routed through the router.
Should FastTrack be enabled blindly?
No. Review queues, IPsec, mangle, policy routing, accounting and monitoring first.
